Training / Practice Material

Important:

• This product is offered for training, testing, or non-commercial use.
• May have extended storage age.
• No warranty or claims are provided.
• Not recommended for customer vehicles.

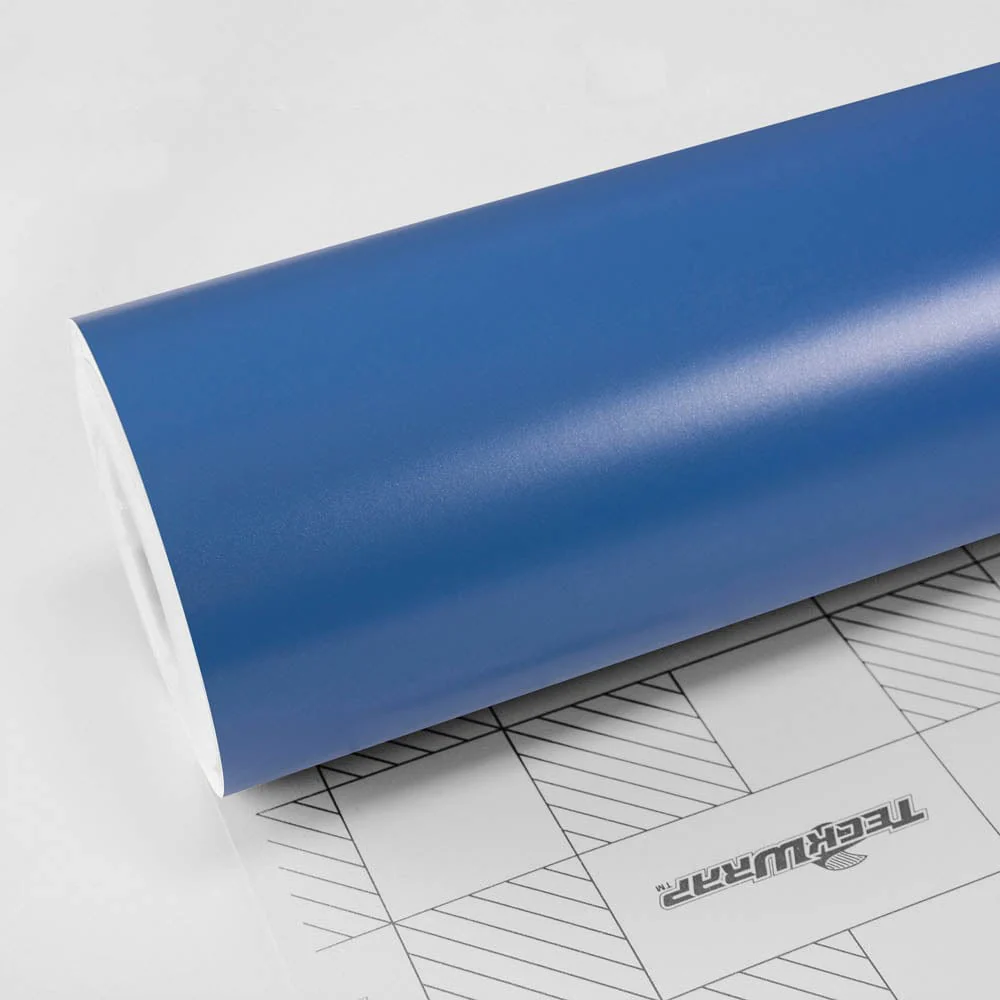

Product Overview

Material: Conformable and reliable Renolit polymeric material
Usage: Suitable for full car wrapping or any smooth/curved surface

Specifications

• Film Thickness: 0.12 mm
• Thickness with Release Liner: 0.28 mm
• Type of Film: Pressure-sensitive high-grade polymeric vinyl film with air-release channels
• Series: 190 series
• Adhesive: Henkel solvent-based acrylic, transparent, ultra-weather-resistant, viscosity 1000–3000 cps, thickness 12 μm dry
• Release Liner: Felix Schoeller Release Liner / 20-104-20-1,9 printed, double side PE coated Kraft (ISO 9001, ISO 140001, OHSAS 18001)
• Original Storing Period: 2 years under recommended conditions. May exceed standard period for training purposes only
• Durability/Warranty: Datasheet

Mechanical Properties

• Application Temperature: +17°C to +18°C
• Usage Temperature Range: -45°C to +45°C
• Post Heating: 100°C
• Surface Gloss (CD): 14.5% (ASTM D523-99, 60° angle)
• Elongation / Break: MD 206.8 / CD 196.4 (ASTM D882-02)
• Tensile Strength: MD 29.5 / CD 24.8 N/mm² – Speed 200 mm/min (ASTM D882-02)
• Dimensional Stability: 2% shrinkage (Oven/10’*70°C, MD, ASTM D1204-02)
• Surface Tension: 34 dynes/cm (ASTM D2578-04a, 24 hours after production)

Installation Tips

• Tools Required: Soft squeegee with buffer
• Conformability: Flat and moderate curves; suitable for deep recesses and inlays
• Directional: Yes
• Overlap Width: 4–5 mm

Package

• Roll Width: 152 cm
• Roll Length: 18 m
• Weight: 13 kg

Important Notes

• Images, colors, and finishes are approximate. Always check a physical color swatch for accuracy.
• Use rolls from the same production LOT to ensure consistency.
• The film may scratch during installation or normal use. Scratching is not covered by the warranty.
